[KM53B88]  RS485 Aluminum Integrated Sensor for wind speed and direction

KM53B88 KM53B88

Technical Parameters

Technical parameterParameter value
BrandKLHA
Wind speed range0~30m/s
Start wind0.2m/s
Wind speed accuracy±3%
Shell materialaluminum
Wind direction range0~360°
Wind direction resolution22.5°
Communication InterfaceRS485
Default baud rate9600 8 n 1
PowerDC12~24V 1A
Running temperature-30~85℃

Product Size

KM53B88 KM53B88

Wiring instructions

Why choose this product?

KM53B88 KM53B88 KM53B88 KM53B88

How to use?

KM53B88

Application solution

KM53B88 KM53B88 KM53B88

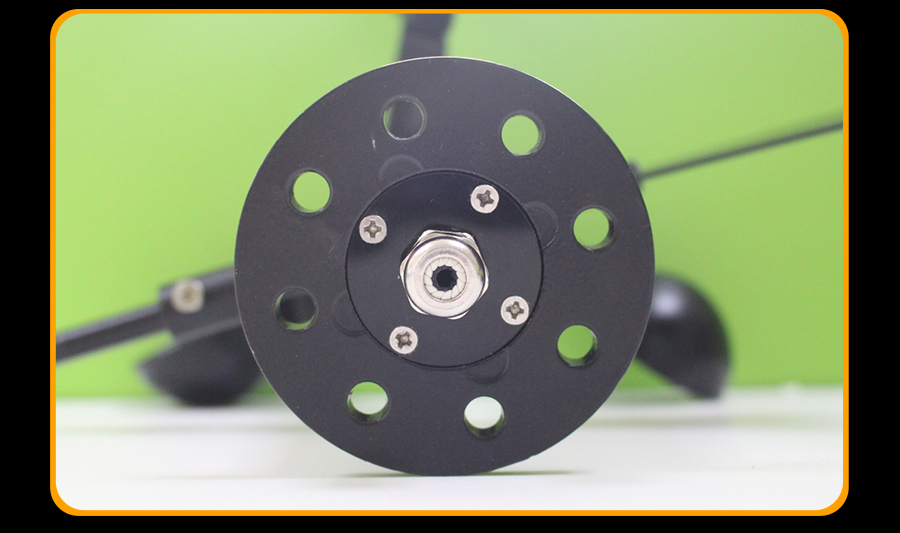

Pictures

KM53B88 KM53B88 KM53B88

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 02 C4 0B .
Address Function Code Start Address Data Length Check Code
010300 0000 02C4 0B
    For the correct query frame, the device will respond with data: 01 03 04 00 7A 00 00 DB EA , response format:
Address Function Code LengthData 1Data 2Check Code
0103 0400 7900 7A DB EA
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 00wind speedRead Only0~65535
4000200 01conductivityRead Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10
